Power Supply electronic 96W - 24V - DIM- Small - IP20

Product Description:

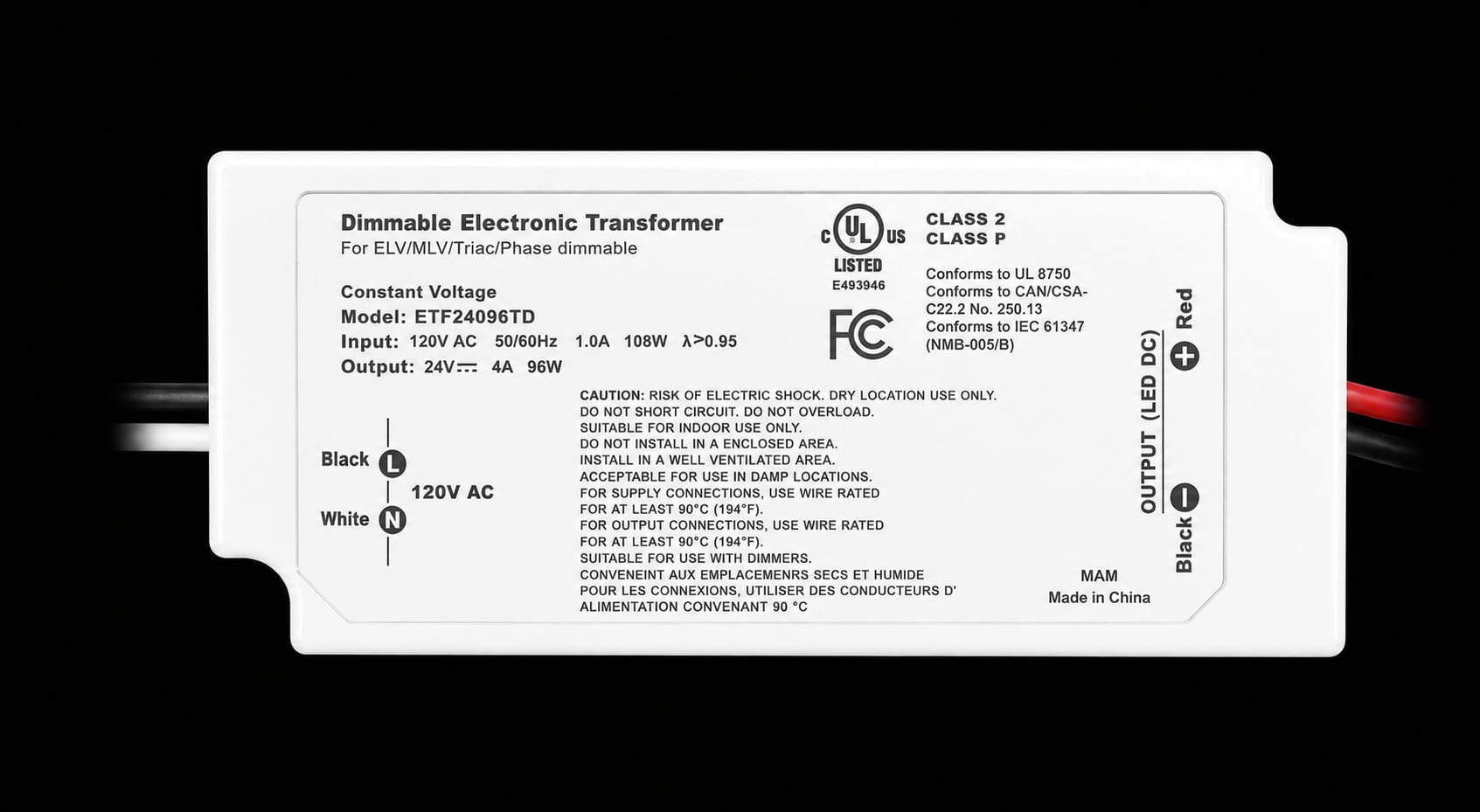

Dimmable Electronic Transformer – 24V DC 96W
The ETF24096TD is a dimmable electronic LED transformer designed for constant voltage LED lighting applications. It is compatible with ELV, MLV, and TRIAC dimming systems, providing reliable and efficient power conversion for indoor LED installations.

Specifications

• Model: ETF24096TD
• Input Voltage: 120V AC
• Frequency: 50/60Hz
• Input Current: 1.0A
• Power Factor: >0.95
• Input Power: 108W
• Output Voltage: 24V DC
• Output Current: 4A
• Output Power: 96W
• Type: Constant Voltage LED Driver
• Wiring
• Input (120V AC)
• Black: Line (L)
• White: Neutral (N)
• Output (LED DC)
• Red: Positive (+)
• Black: Negative (−)

Certifications

1. UL Listed
2. Class 2
3. Class
4. FCC Compliant
5. Conforms to UL 8750
6. Conforms to CAN/CSA C22.2 No. 250.13
7. Conforms to IEC 61347 (NMB-005/B)

Features

Dimmable design compatible with ELV, MLV, and TRIAC dimmers
Constant voltage 24V DC output
High efficiency and stable performance
Suitable for LED strip lights and low-voltage LED applications
Indoor installation only
Safety Information
Risk of electric shock.
Dry location use only.
Do not short circuit.
Do not overload.
Install in an enclosed and well-ventilated area.
Use conductors rated for at least 90°C (194°F).
Country of Origin
Made in China
